Our range of hydrogen breath test monitors,
helping to detect gastrointestinal disorders,
one breath at a time.



GastroCH4ECK hydrogen and methane breath test monitor

Breath hydrogen monitoring to aid in the detection of gastrointestinal disorders

What is it?

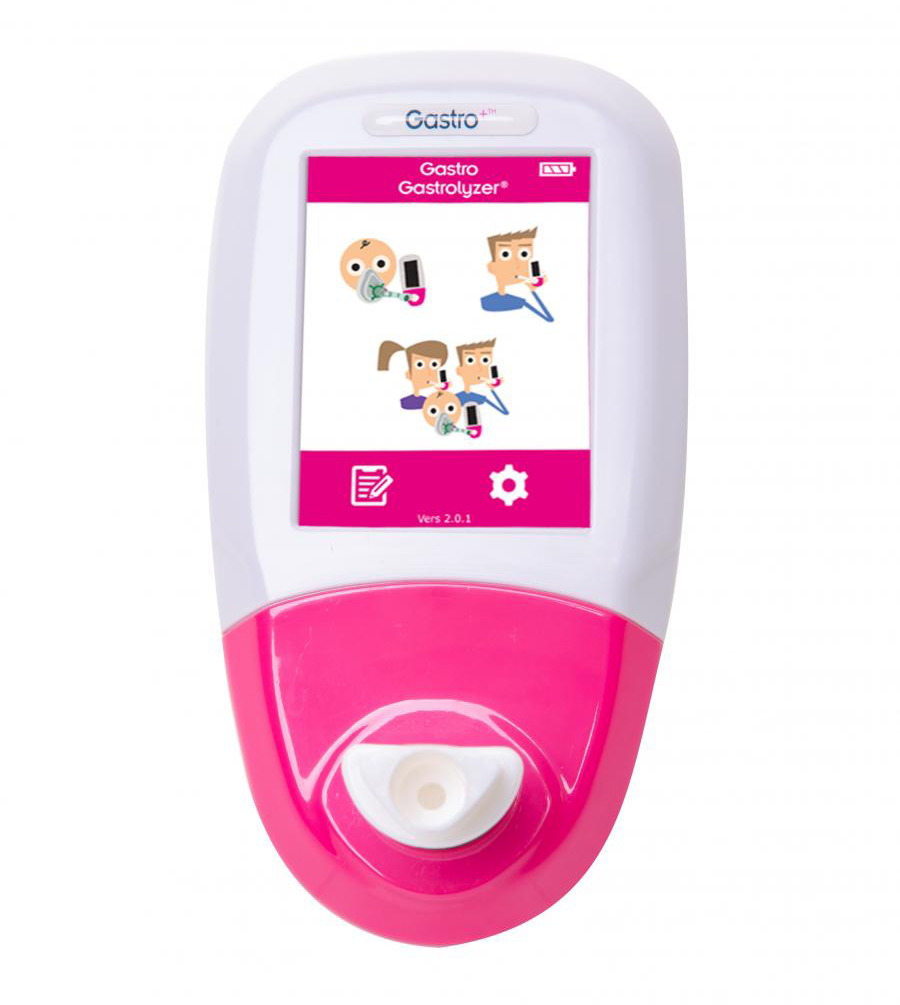

Helping to detect gastrointestinal disorders, the Gastro+™ is a portable hand-held hydrogen breath test. It is designed for health care professionals to aid in the detection of gastrointestinal disorders. It can be used as a lactose intolerance test, and to aid in the diagnosis of a variety of gastrointestinal disorders such as fructose intolerance and intestinal bacteria overgrowth.

The new Gastro+™ features built in suggested protocols with automatic alerts making it easy to test multiple patients with different possible gastrintestinal disorders in one sitting, saving gastroenterologist, nurses and doctors a lot of time.

Breath testing with the Gastro+™ for gastrointestinal disorders is clinically proven and is being used by many health professionals already, its simple, non-invasive and low cost.

Ask us for a FREE demo of the Gastro+™ today.

Why Gastro+™?

The Gastro+™ offers a portable system for all your hydrogen breath testing (HBT) needs and offers an alternative option to the GastroCH4ECK®.

Using the Gastro+™ aids in the detection of gastrointestinal disorders such as lactose intolerance and fructose intolerance with a simple breath test.


Why is it important?

Hydrogen Breath Testing (HBT)

HBT is a non-invasive, sensitive and specific means of diagnosing small bowel sugar malabsorption. They make use of gut bacteria’s ability to digest sugars and convert these to hydrogen, which is then absorbed into the blood and can be measured in exhaled breath.

The test is commonly used in paediatric and adult gastroenterology departments to diagnose malabsorption of the sugars lactose, fructose and sucrose. It is also used to investigate small intestinal bacterial overgrowth (SIBO).

The Gastrolyzer® range is world renowned for delivering accurate hydrogen breath testing, cited by clinical leaders in gastroenterology, such as Robert Heuschkel and Way Seah Lee.

Benefit for the user

The Gastro+™ is easy-to-use and a non-invasive breath hydrogen monitor, with two sampling modes and a colour touch screen.

The monitor is quick and easy use, with visual prompts for patients whilst taking a test to ensure correct results every time.

The Gastro+™ requires 3 AA batteries, making it totally portable and easy to transport.

The monitor has built in SteriTouch technology to ensure optimum infection control.

There are two sampling modes to enable the use of breath hydrogen testing for patients of all ages.

Face mask sampling system - this sampling system is recommended for use with younger or older patients who are unable to cooperate with the test. The Gastro+™ is attached to a facemask, which is then placed over the mouth and nose of the patient. Once ‘face mask’ mode is selected the Gastro+™ will take a real-time reading until the operator is happy the reading is correct.

The new Gastro+™ has built in suggested protocols for SIBO, lactose intolerance, lactulose with alarms alerting patients when to take their next breath test, with the multiple patient setting you can test up to 10 patients in one sitting and store up to 100 patient profiles on the Gastro+™.

The readings stored on the Gastro+™ can be downloaded to the GastroCHART™ database which comes FREE with every Gastro+™.

How to use the Gastro+™ Gastrolyzer® hydrogen breath monitor

A tutorial on how to use the Gastro+™ Gastrolyzer®, including breath testing, face mask testing, multiple patient testing and calibration.

Literature

The latest literature for the Gastro+? Gastrolyzer®.


Gastro+™ consumables

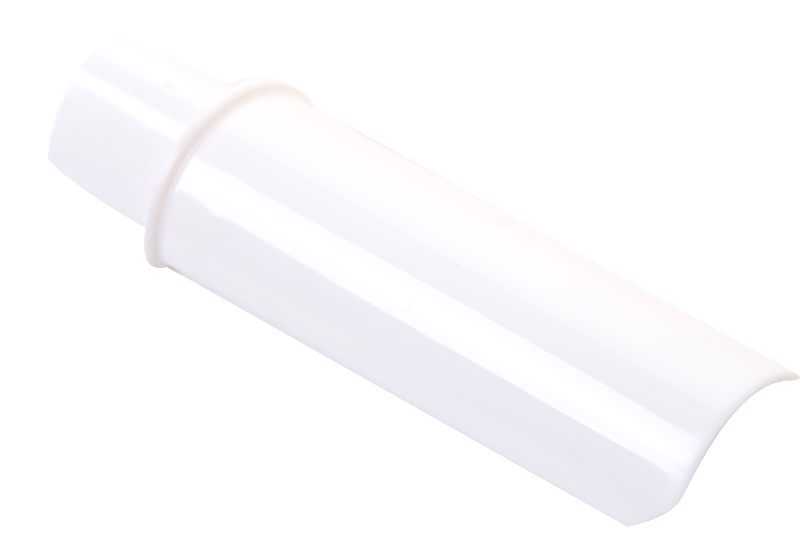

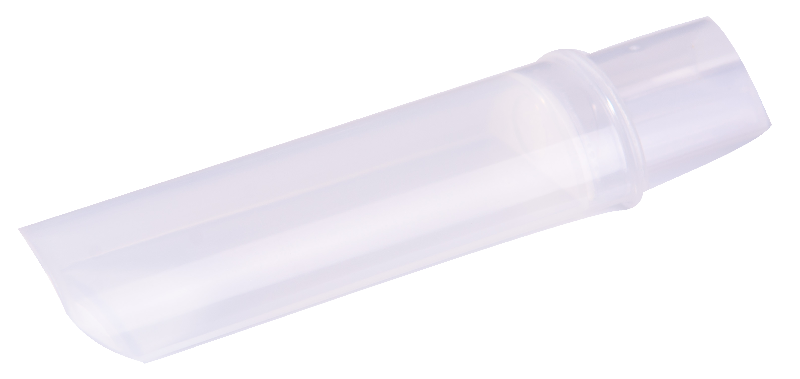

SteriBreath™ mouthpieces

SteriBreath™ mouthpieces are both cost effective and compact. They are individually sealed for optimum infection control, whilst condensation in the tube confirms an accurate breath sample.


OneBreath™

The OneBreath™ mouthpiece is a single-use bacterial filter mouthpiece and can be attached directly to the monitor to take a breath sample. The OneBreath™ incorporates a one-way valve and an infection control filter, which are proven to remove and trap >99.9% of airborne bacteria1.


Face mask sampling system

This sampling system is single patent use and allows the patient to breathe normally through a face mask in order to produce a breath sample.

Adult face mask

Suitable for using with adults.

Medium face mask

Suitable for using with adolescents.

Infant face mask

Suitable for using with infants.

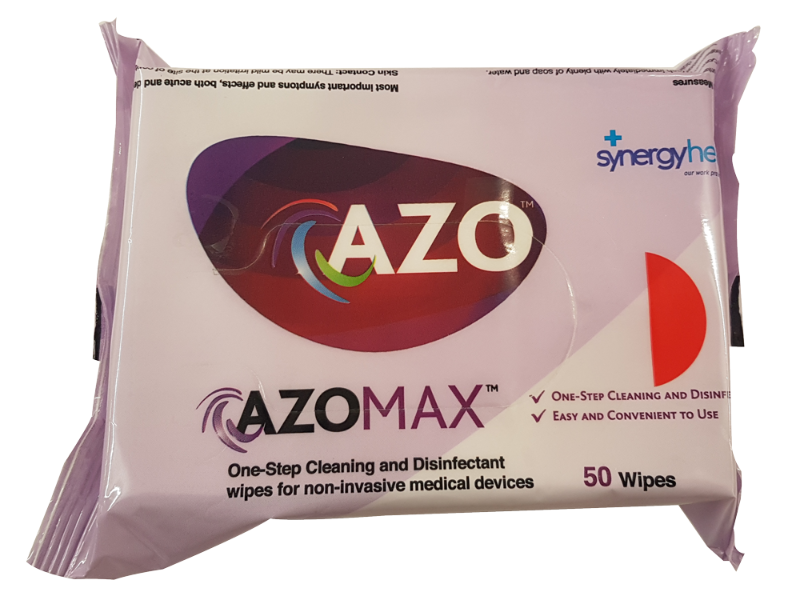

Cleaning wipes

Free from alcohol to ensure continued performance of your monitor. Products containing alcohol cannot be used on any of the Gastrolyzer® range. Pack of 50 wipes.

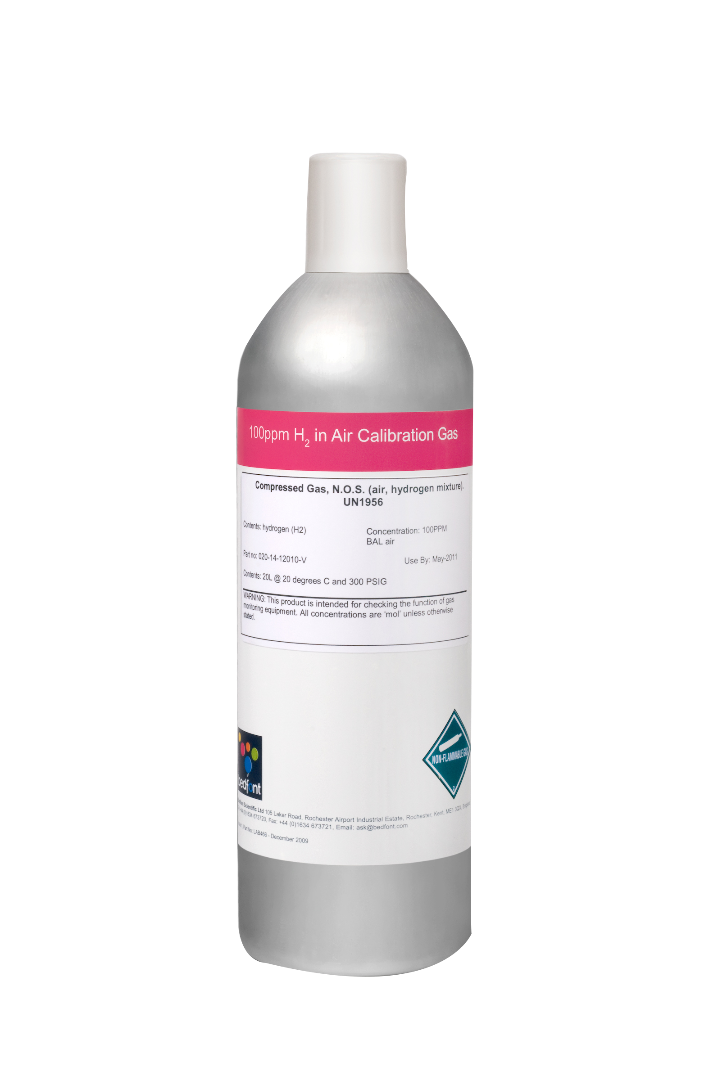

Calibration gas for Gastro+™

The Gastro+™ requires calibration quarterly using 100ppm H2 gas, provided as a kit or replacement cylinder.


Product specification

Concentration range
0-500ppm
Display
Full colour touchscreen
Detection principle
Electrochemical sensor
Repeatability
<5%
Accuracy
?±3ppm/10% - whichever is greater*
Power
3x AA (LR6 or equivalent) - up to 1000 minutes; 1 x CR2032 Lithium coin cell
T90 response time
<40 seconds
Operating temperature
15-35°C
Storage/transport temperature
0-50°C
Operating/storage/transport pressure
Atmospheric ±10%
Operating humidity
15-90% non-condensing
Sensor operating life
2 years
Sensor sensitivity
1ppm
Sensor drift
<2% per month
Dimensions
Approx. 37 x 77 x 140mm
Weight
Approx. 215g (including batteries)
Materials
Case: polycarbonate/ABS blend with SteriTouch® anti-microbial additive; D-piece™: polypropylene; SteriBreath™: polypropylene; OneBreath mouthpiece: polypropylene
CO cross interference
<4%
*Readings of >200ppm at temperature between 26-35oC can decrease accuracy to 15%.

Gastro+™ images

Here is our gallery of Gastro+ images and consumables, these are compatible with the Gastro+ Gastrolyzer®.
