Hanarostent® TTS Application allows you to perform accurate & easy stenting under endoscopic visualization during the procedure and enhances the procedure to palliate obstructive symptoms for patients with luminal narrowing stricture.
The Covered Esophagus Stent is used for application in palliative treatment of esophageal stricture and/or trachea-esophageal fistula caused by malignant tumors.
| TTS | OTW |
|---|---|
| Endoscopy → Guide-wire → Delivery Device → Stent Deployment → Remove at once | Endoscopy → Guide-wire → Endoscopy remove → Delivery Device → (Endoscopy, Sheath, Catheter) → Stent Deployment → Remove all from the patient |
| TTS | OTW |
|---|---|
| - Rapid clinical procedure - Minimized exposure of radiation - 10.5Fr(3.5mm) profile introducer | - Frequent in-out of Endoscopy - More exposure of radiation than TTS procedure - 18Fr / 24Fr (6mm / 8mm) profile introducer |

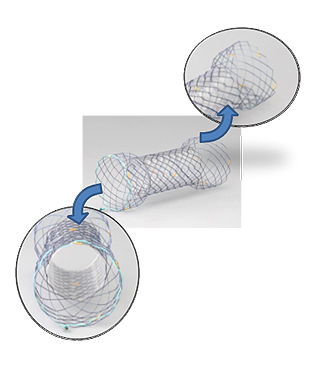

| Yellow marker on Delivery Device | Partially covered stent | Lassos |
|---|---|---|
 |
 |
 |
| The Endoscopic Transition Zone is designed to aid in stent placement accuracy when deployed using endoscopic visualization | Partially covered may assist in anchoring the stent to help prevent migrationUp to 20mm Diameter is available in partially covered stent | Repositioning and/or retrievalThe fully covered stent may be reconstrained up to 75% of deployment and 2 times during the initial stent placement procedure. |
| Stent(mm) | Delivery Device | ||||
|---|---|---|---|---|---|
| Diameter | Usable Length* | Total Length | Length(mm) | Diameter(mm/fr) | |
| EPBA-18-060-180 | 26-18-26 | 20 | 60 | 1800 | 3.5/10.5 |
| EPBA-18-150-180 | 110 | 150 | 1800 | 3.5/10.5 | |
| EPBA-20-060-180 | 26-20-26 | 20 | 60 | 1800 | 3.5/10.5 |
| EPBA-20-150-180 | 110 | 150 | 1800 | 3.5/10.5 | |
Hanarostent® TTS Esophageal Stent Marketing Brochure
※Sizing and availability varies by country
All medical devices have associated risks. Please refer to the package insert and other labeling for a complete list of indications, contraindications, precautions and warnings. For further information on the Products, please contact your local M.I.Tech(Hanarostent) Representative.
