Biliary Stent


Introduction

A Completion of Non-Covered Stent, Hybrid weaving type is preloaded with 8fr braided introducer to have optimized radial force and great conformity in bile duct.

Indications for use (Intended use)

The Non-Covered Biliary Stent is used for application in palliative treatment of bile duct stricture caused by malignant tumors.

Product Overview

What is the “Hybrid” in Stent

Balanced radial force (for Good patency, good fixation to the wall, lower migration risk, prevent perforation) Low axial force (for less traumatic feeling and less sensible for peristaltic motion, and good anatomy conformability)

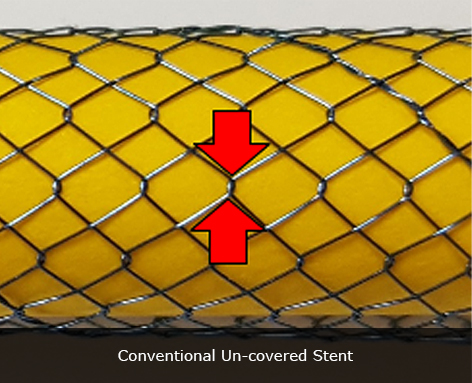

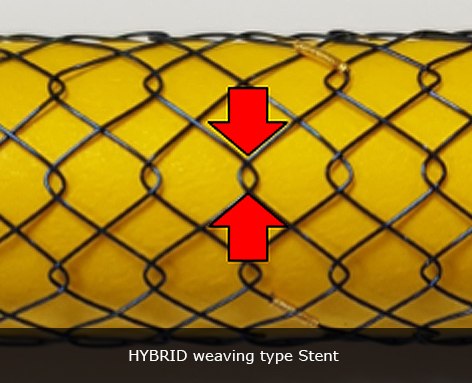

Conventional Un-covered Stent, HYBRID weaving type Stent
Conventional Un-covered Stent HYBRID weaving type Stent

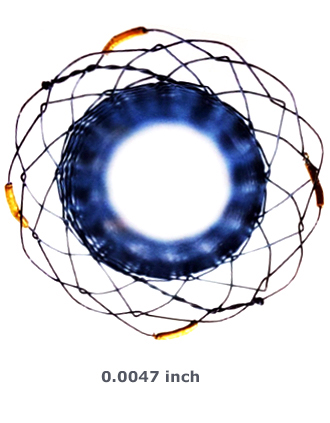

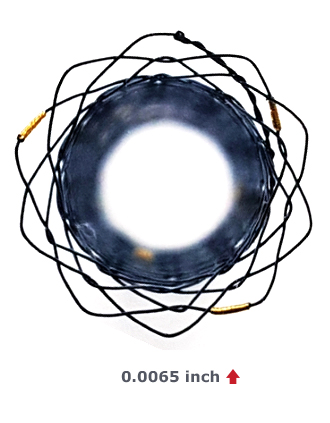

0.0047 inch 0.0065 inch(up)

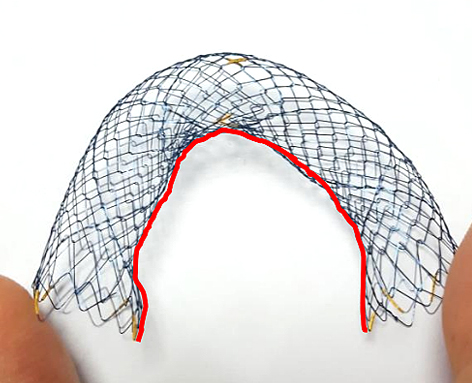

Outstanding Flexibility By Native bile duct

Resources

ORDERING INFO.

Endoscopic Application

*Increment of 10mm
Stent(mm), Delivery Device
Stent(mm) Delivery Device
Diameter Usable Length* Total Length Length(mm) Diameter(mm/fr)
BNA-08-040-180 11.5-8-11.5 26 40 1800 2.66/8
BNA-08-120-180 106 120 1800 2.66/8
BNA-10-040-180 13.5-10-13.5 26 40 1800 2.66/8
BNA-10-120-180 106 120 1800 2.66/8

Percutaneous Application

*Increment of 10mm
Stent(mm), Delivery Device
Stent(mm) Delivery Device
Diameter Usable Length* Total Length Length(mm) Diameter(mm/fr)
BNA-08-040-060 11.5-8-11.5 26 40 600 2.66/8
BNA-08-120-060 106 120 600 2.66/8
BNA-10-040-060 13.5-10-13.5 26 40 600 2.66/8
BNA-10-120-060 106 120 600 2.66/8

Percutaneous Application

Stent(mm), Delivery Device
Stent(mm) Delivery Device
Diameter Usable Length* Total Length Length(mm) Diameter(mm/fr)
BNA-08-040-060 11.5-8-11.5 26 40 600 2.66/8
BNA-08-120-060 106 120 600 2.66/8
BNA-10-040-060 13.5-10-13.5 26 40 600 2.66/8
BNA-10-120-060 106 120 600 2.66/8

※Sizing and availability varies by country

All medical devices have associated risks. Please refer to the package insert and other labeling for a complete list of indications, contraindications, precautions and warnings. For further information on the Products, please contact your local M.I.Tech(Hanarostent) Representative..
