Biliary Stent

Introduction

Both the proximal and distal anchor flanges are designed to hold tissue layers tight and prevent stent migration. The large lumen diameter yields effective drainage, and the short body length and the high stability enable the easy insertion of a standard upper endoscope into the cyst for direct endoscopic necrosectomy(DEN) and EUS-guided transluminal drainage (EUS-TD)1

1) Mukai S, Tsuchiya T, Itoi T, Tsuji S, Tanaka R, Tonozuka R, Nagakawa Y, Kasuya K, Shimatani M, Sofuni A, Prospective evaluation of a new biflanged metal stent for the treatment of pancreatic fluid collections (with videos), Gastrointestinal Endoscopy (2016), doi: 10.1016/j.gie.2016.11.025

Indications for use (Intended use)

For the treatment of Pancreatic Fluid Collections1)

Product Overview

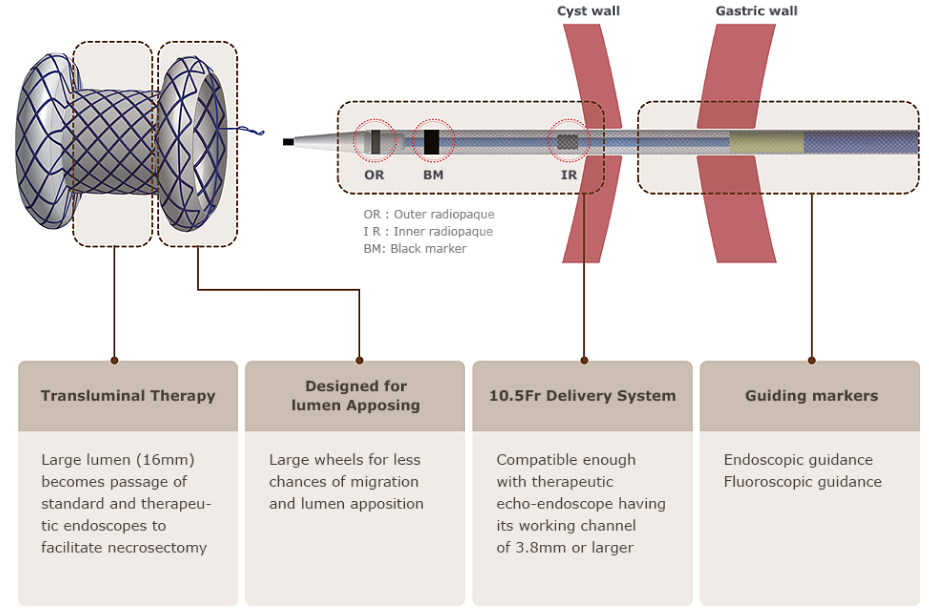

Description

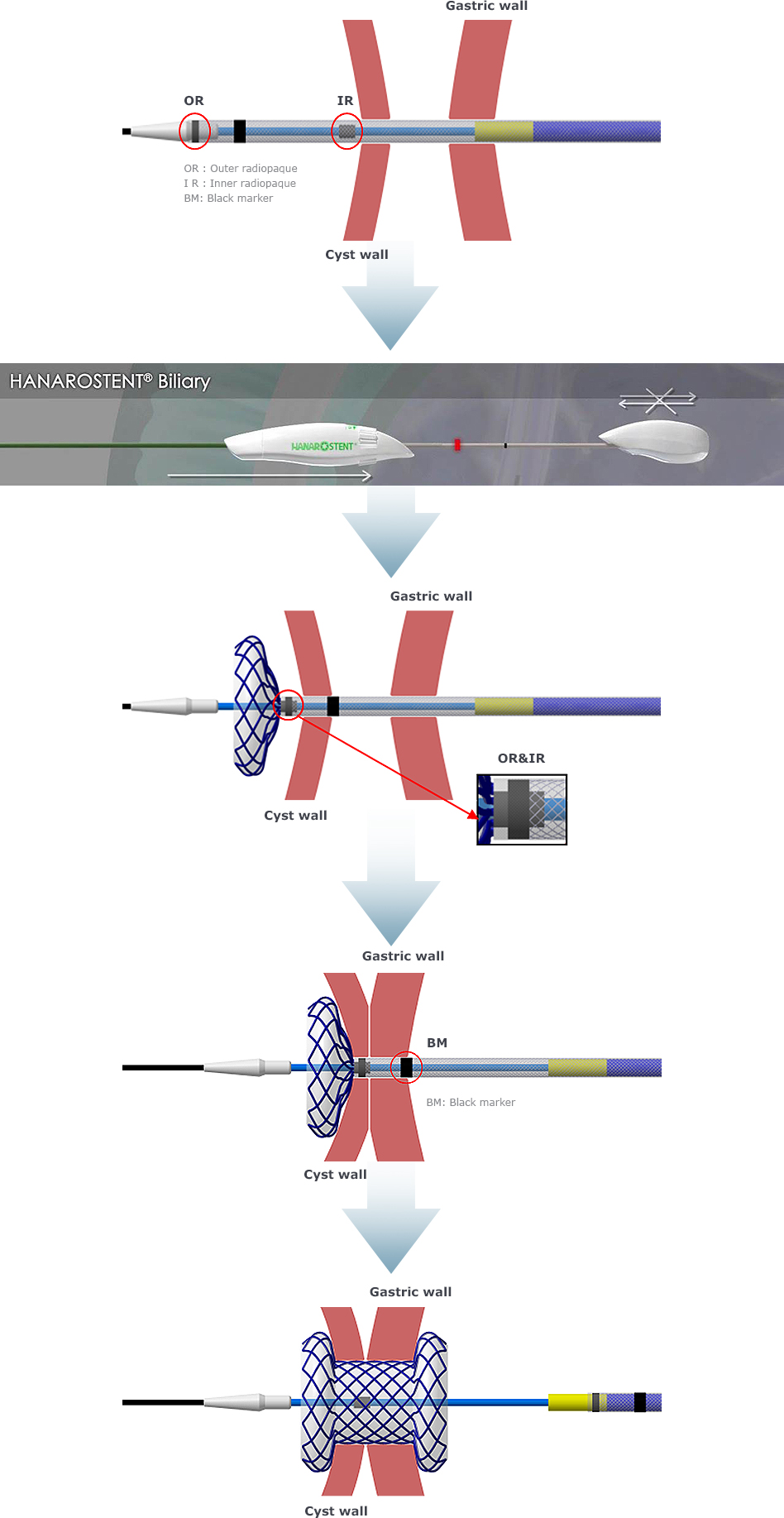

Stenting Procedure

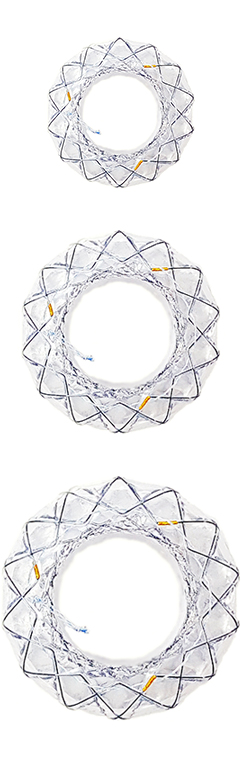

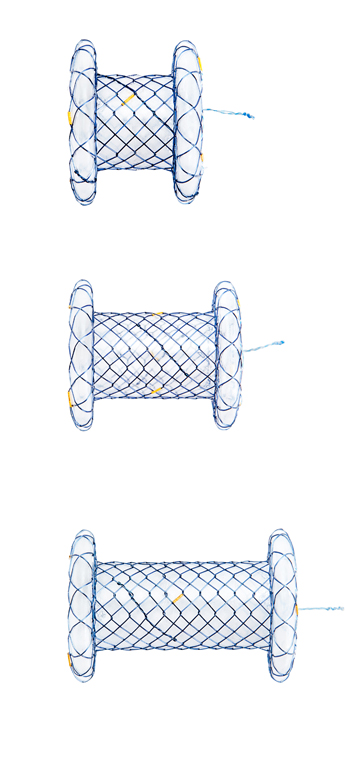

Various Sizes

Various Sizes
Features, Benefits
Features Benefits
Various Sizes Diameter 10~16mm
A Standard upper endoscope was directly advanced via the stent and Necrotic tissue was removed using a snare forceps safety with 16mm of stent diameter
Length 10~30mm
The distal flange was deployed under EUS and Fluoroscopic guidance and the necrotic fluid was drained through the stent due to long enough length of stent after the stent placement

Resources

ORDERING INFO.

Endoscopic Application

Endoscopic Application

Stent(mm), Delivery Device
Stent(mm) Delivery Device
Diameter Usable Length* Total Length Length(mm) Diameter(mm/fr)
BCF-10-020-180 22-10-22 13 20 1800 3.5/10.5
BCF-10-040-180 33 40 1800 3.5/10.5
BCF-12-020-180 24-12-24 13 20 1800 3.5/10.5
BCF-12-040-180 33 40 1800 3.5/10.5
BCF-14-020-180 26-14-26 12 20 1800 3.5/10.5
BCF-14-040-180 32 40 1800 3.5/10.5
BCF-16-020-180 28-16-28 12 20 1800 3.5/10.5
BCF-16-040-180 32 40 1800 3.5/10.5

RESOURCES

Mukai S, Tsuchiya T, Itoi T, Tsuji S, Tanaka R, Tonozuka R, Nagakawa Y, Kasuya K, Shimatani M, Sofuni A, Prospective evaluation of a new biflanged metal stent for the treatment of pancreatic fluid collections (with videos), Gastrointestinal Endoscopy (2016), doi: 10.1016/j.gie.2016.11.025

※Sizing and availability varies by country

All medical devices have associated risks. Please refer to the package insert and other labeling for a complete list of indications, contraindications, precautions and warnings. For further information on the Products, please contact your local M.I.Tech(Hanarostent) Representative.
